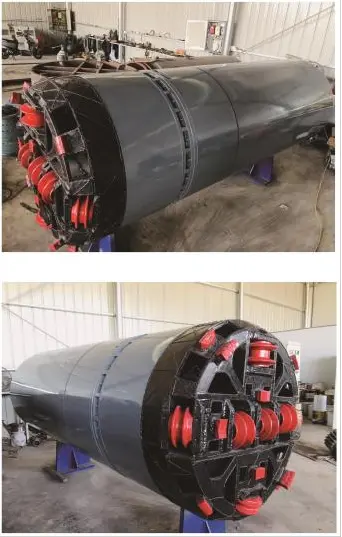

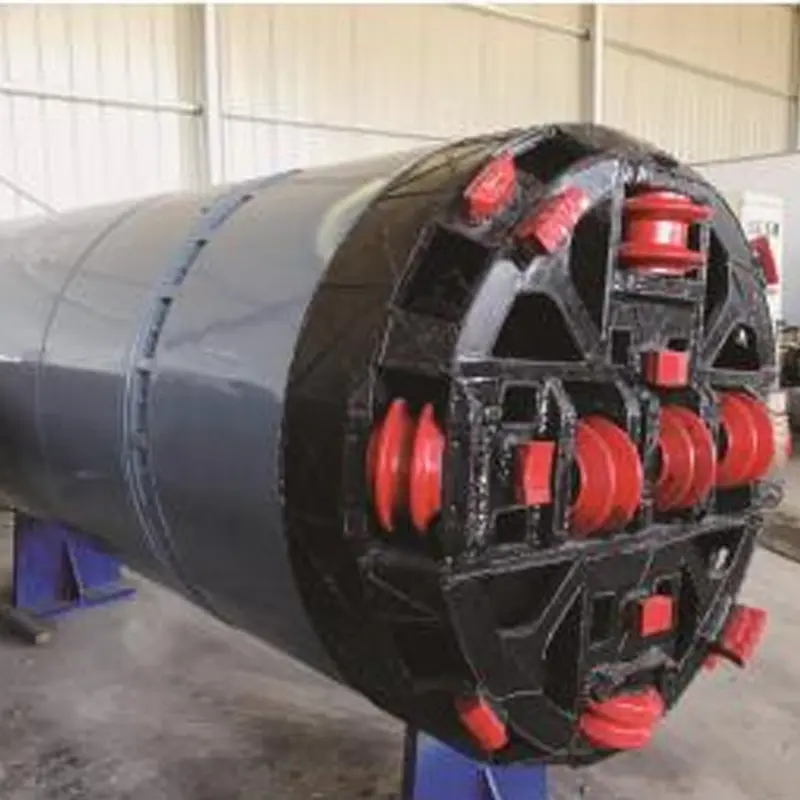

Xpisces Series Rock Type Pipe Jacking Machine (DN1000 - DN3500)

Scope of application

Suitable for sand, gravel, pebble, boulder and rock formations. Especially suitable for hard rock geology. The strength can exceed 150 MPa.

Applicable material of pipes

Suitable for prefabricated cement pipes, steel pipes, ductile cast iron, fiberglass reinforced mortar pipes, clay pipes, etc.

Product introduction

1. They adopt the patented jacking device drive, with strong jacking force, high efficiency of jacking;

2. The cutter adopts strong rock-breaking structure, with high strength adaptability, and can match many kinds of complex geological conditions;

3. High customized service realizes highly integrated auxiliary parts, strong relevance to the geology, better passage capacity, strong reliability;

4. The secondary crushing chamber design, through the twisted disk and internal welding, allows repeated multiple crushing for waste materials in the chamber;

5. With precise correction, the jacking error can be controlled at ±0-50mm;

6. The slurry treatment is more environmentally friendly and efficient. The downhole integrated slurry treatment or ground slurry separation integrated treatment system is optional;

7. The patented water intake and discharge system is configured, with more than 20 kinds of water flushing program, to ensure that the cutter and the pipe are not blocked, are safer and more reliable;

8. Various models of DN1000-DN3500mm can be customized.
